The machine has the vibration demand, the weight of the machine itself is very heavy, so it needs to be isolated from the elevated floor.
NON | |
---|---|
简述 | There is no vibration requirement for the machine, and the foot weight of the equipment is less than 300kg / in2, so it does not need to use steel plate or steel structure for support. It only needs to reinforce the supporting weight of the supporting feet under the corresponding elevated floor. |
适用机台 | Foot weight within 300kg / in2 |
There is no need for vibration or rigidity, but the weight of the machine is a little heavy. Steel plate is used to disperse the weight of the machine to avoid the subsidence of the elevated floor.
A | |
---|---|
简述 | There is no vibration demand for the machine, and the foot weight of the equipment is between 300kg / in2 and 700kg / in2. Partial pressure steel plate is used for partial pressure operation. |
适用机台 | The foot weight is within 300kg / in2 ~ 700kg / in2 |
There is no need for vibration or rigidity of the machine, but the weight is too heavy for the elevated floor, so the steel structure must be reinforced under the steel plate.
B | |
---|---|
简述 | If the equipment has a load demand or the foot position of the equipment is higher than 700kg / in2, the elevated floor can not bear the weight, so the steel structure base should be used for bearing. |
适用机台 | The foot weight is higher than 700kg / in2 |
The machine itself has vibration and rigidity requirements, or is extremely sensitive to displacement of the machine, to cement base to achieve the best isolation effect.
C | |
---|---|
简述 | The machine has strict vibration specifications and rigid requirements, and adopts high rigid RC structure to achieve the best isolation. |
适用机台 | There is a demand for micro vibration |
The machine has the vibration demand, the weight of the machine itself is not heavy, and the independent feet are isolated from the elevated floor.
D | |
---|---|
简述 | The machine isolated the vibration demand or load demand of the elevated floor, and adopted the support form of independent feet (elephant feet) to support the weight of the equipment and isolate it from the elevated floor. |
适用机台 | Isolation of elevated floor vibration |

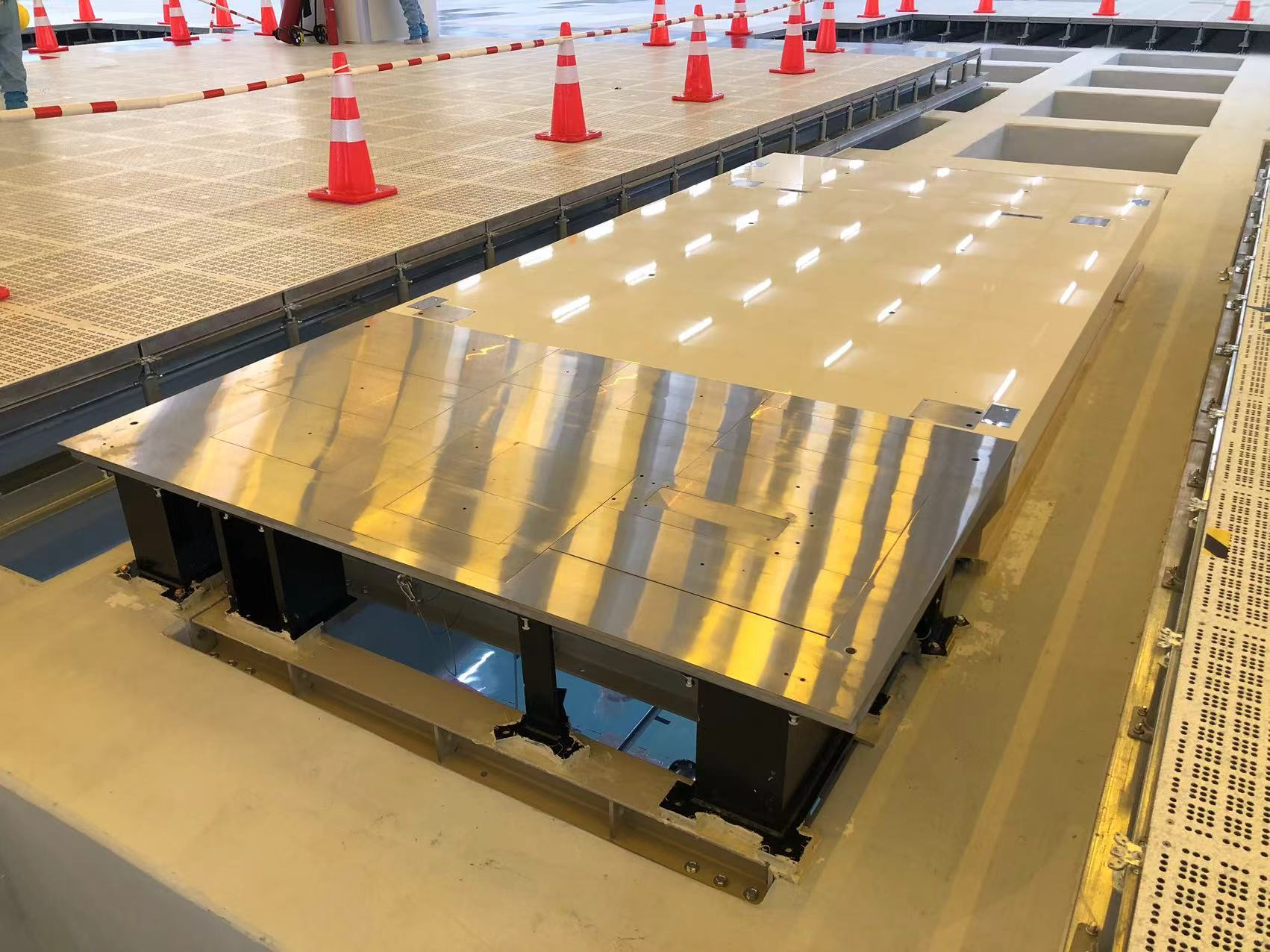

Using active isolation equipment to achieve the best isolation
Active isolation | |
---|---|
简述 | If the machine has strict vibration specifications or the vibration of the equipment installation environment is greater than the equipment requirement specifications, the active isolation equipment is used to achieve the best isolation. |
适用机台 | Micro vibration specification VC-E, F, G |
